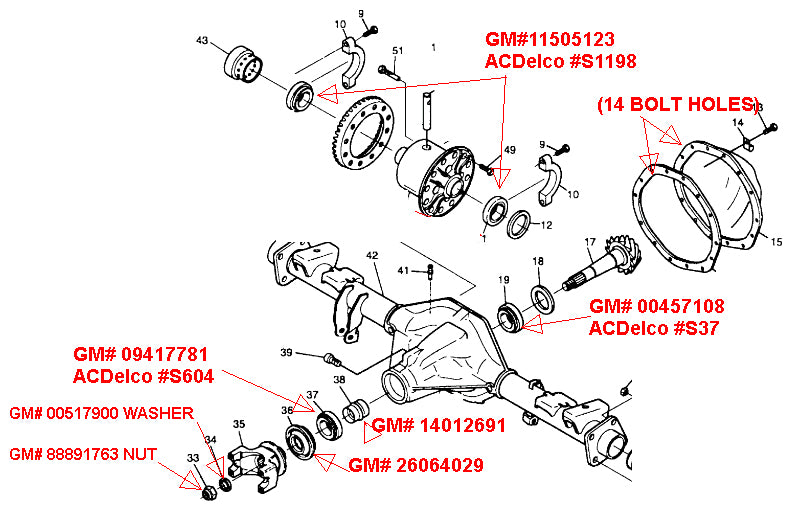

Included in Kit the Following: BEARINGS (INCLS CUP AND CONE)
TWO(#6)- GM#11505123 (ACDelco #S1198) DIFF BEARING, Retails $112.18 ea. (TIMKEN, JLM506849-JLM506811, 55MM ID x 90MM OD x 25MM THK)
ONE(#1)- GM#00457108 (ACDelco#S37) PINION HEAD (INNER) BEARING, Retails $78.75 ea. (TIMKEN, HM804846-HM804810, 1 7/8 IN ID x 3 3/4 IN OD x 1 3/16 IN THK)
ONE(#5)- GM#09417781 (ACDelco #S604) PINION TAIL (OUTER) BEARING, Retails $53.05 ea. (TIMKEN, HM88649-HM88610, 1 3/8 IN ID x 2 27/32 IN OD x 1 IN THK) (2.84") (5.484)
ONE(#7)- GM#26064029 PINION SEAL, Retails $15.77 ea.
ONE(#4)- GM#14012691 COLLAPSIBLE SPACER, Retails $12.77 ea. (35.5MM I.D. x 16.3MM WIDE)
ONE(#2)- GM#00517900 PINION WASHER, Retails $6.66 ea. (.890 x 1.625 x .190)
ONE(#3)- GM#88891763 PREVAILING TORQUE PINION NUT, Retails $5.41 ea. (M10)
TWO(#6)- GM#11505123 (ACDelco #S1198) DIFF BEARING, Retails $112.18 ea. (TIMKEN, JLM506849-JLM506811, 55MM ID x 90MM OD x 25MM THK)
ONE(#1)- GM#00457108 (ACDelco#S37) PINION HEAD (INNER) BEARING, Retails $78.75 ea. (TIMKEN, HM804846-HM804810, 1 7/8 IN ID x 3 3/4 IN OD x 1 3/16 IN THK)
ONE(#5)- GM#09417781 (ACDelco #S604) PINION TAIL (OUTER) BEARING, Retails $53.05 ea. (TIMKEN, HM88649-HM88610, 1 3/8 IN ID x 2 27/32 IN OD x 1 IN THK) (2.84") (5.484)
ONE(#7)- GM#26064029 PINION SEAL, Retails $15.77 ea.
ONE(#4)- GM#14012691 COLLAPSIBLE SPACER, Retails $12.77 ea. (35.5MM I.D. x 16.3MM WIDE)
ONE(#2)- GM#00517900 PINION WASHER, Retails $6.66 ea. (.890 x 1.625 x .190)
ONE(#3)- GM#88891763 PREVAILING TORQUE PINION NUT, Retails $5.41 ea. (M10)
Product Specification
- Brand : American Axle
- Condition : NEW
- Estimated Handling Time (Days) : 1
- Genuine OEM : TRUE
- Interchange Part Number : 10033488 09417782
- MPN : 74067005
- UPC : 760999006024
Applications
1998-2011 GM Sierra, Silverado, Suburban, Yukon, Avalanche, SSR, Trailblazer SS, H2, Savana, Express ; 9.5" 14 Bolt - Rear Axle2003-2012 Dodge Ram ; 9.25" Beam - Front Axle
1988-2011 GM Sierra, Silverado, Suburban, Yukon XL, Avalanche ; 9.25" Clamshell - Front Axle
