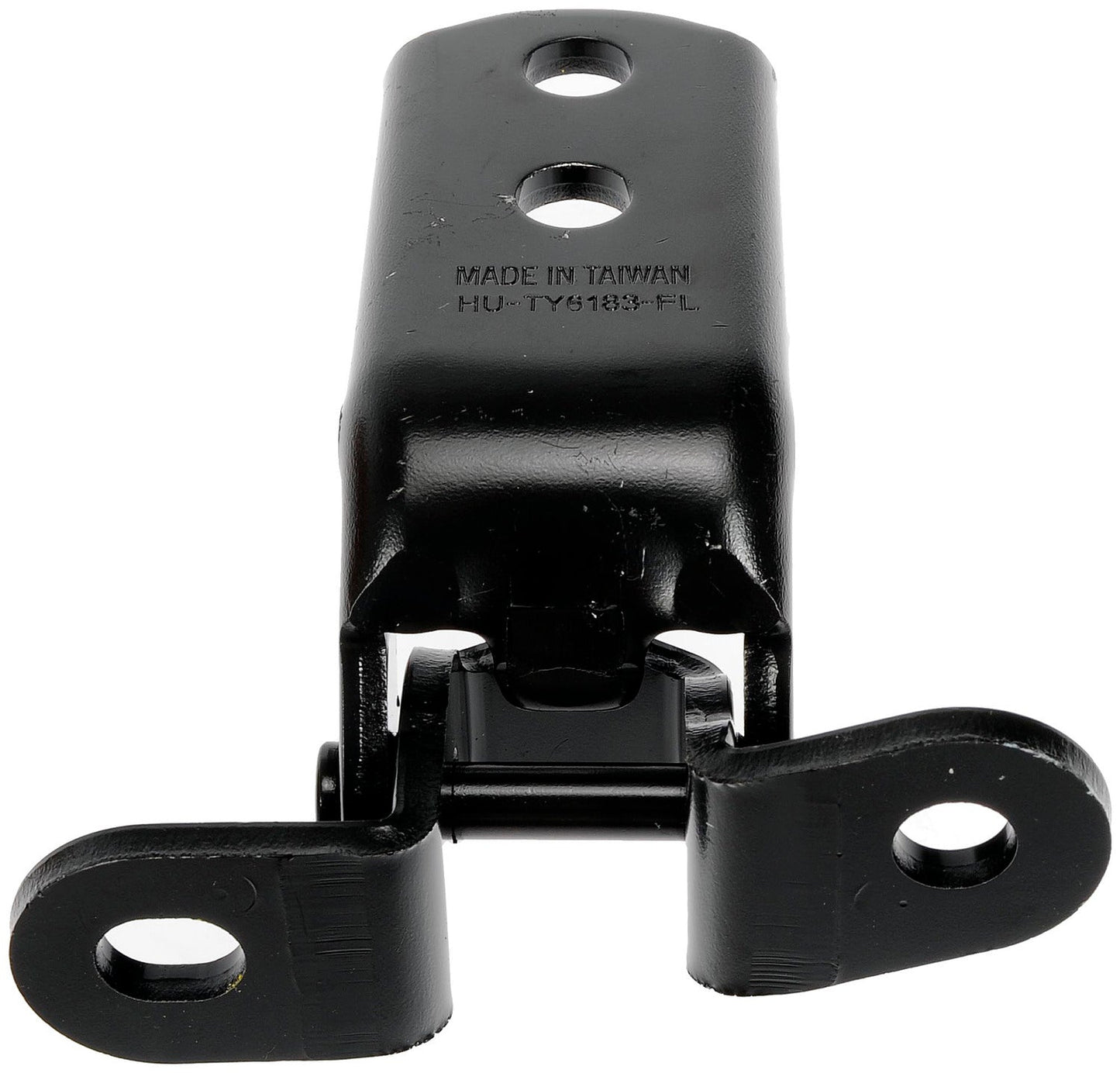

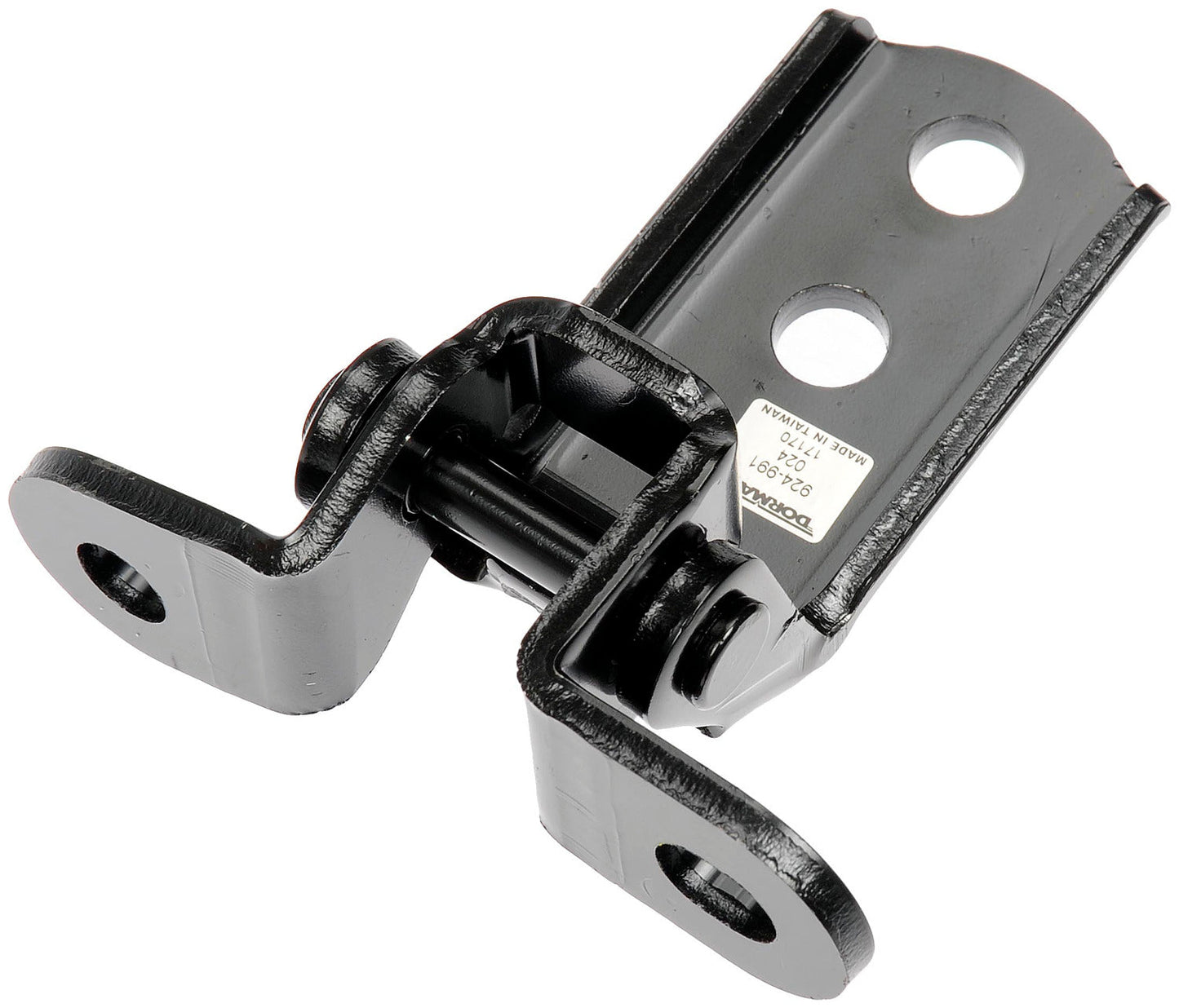

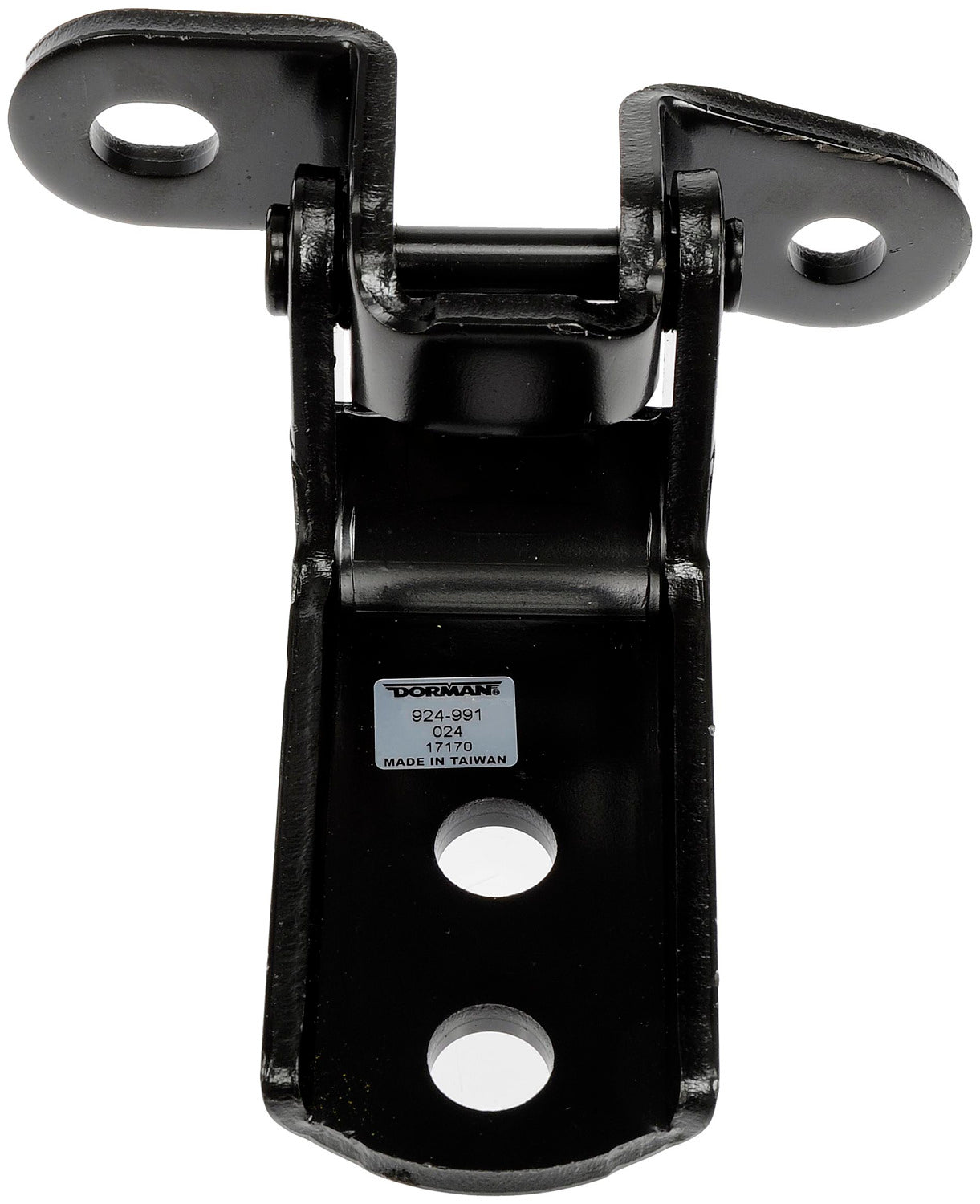

Door Hinge Assembly
Door Hinge Assembly Front Door Lower Right Or Upper Left
Assembled Height:115 mm
Assembled Length:107 mm
Assembled Width:57 mm
Attachment Method:Bolt On
Color/Finish:Black Paint
Configuration:One Piece
Flange 1 Mount Hole Diameter:11 mm
Flange 1 Mount Hole Quantity:2
Flange 2 Mount Hole Diameter:12 mm
Flange 2 Mount Hole Quantity:2
Installation Hardware Included:No
Interior/Exterior:Interior
Material:Carbon Steel
Package Contents:1 Hinge
Pin And Bushings Included:Yes
Pin Attachment Method:Fixed
Pin Diameter (in):8 mm
Pin Material:Steel
Plate Material:Carbon Steel
Universal Or Specific Fit:Specific Fit
Door Hinge Assembly Front Door Lower Right Or Upper Left
Assembled Height:115 mm
Assembled Length:107 mm
Assembled Width:57 mm
Attachment Method:Bolt On
Color/Finish:Black Paint
Configuration:One Piece
Flange 1 Mount Hole Diameter:11 mm
Flange 1 Mount Hole Quantity:2
Flange 2 Mount Hole Diameter:12 mm
Flange 2 Mount Hole Quantity:2
Installation Hardware Included:No
Interior/Exterior:Interior
Material:Carbon Steel
Package Contents:1 Hinge
Pin And Bushings Included:Yes
Pin Attachment Method:Fixed
Pin Diameter (in):8 mm
Pin Material:Steel
Plate Material:Carbon Steel
Universal Or Specific Fit:Specific Fit
Product Specification
- Brand : Dorman - Solutions
- Condition : NEW
- Estimated Handling Time (Days) : 1
- Height : 5.039
- Length : 3.071
- MPN : 924-991
- UPC : 885484502383
- Width : 5.63
Applications
2017 Lexus GS F U/K U/K; Front Right Upper ; Built in Japan2017 Lexus NX200t U/K U/K; Front Right Upper ; Built in Japan
2017 Lexus NX300h U/K U/K; Front Right Upper ; Built in Japan
2017 Lexus RX350 U/K U/K; Front Right Upper ; Built in Japan
2017 Lexus RX450h U/K U/K; Front Right Upper ; Built in Japan
2017 Toyota Land Cruiser U/K U/K; Front Right Upper ; Built in Japan
2017 Toyota Prius U/K U/K; Front Right Upper
