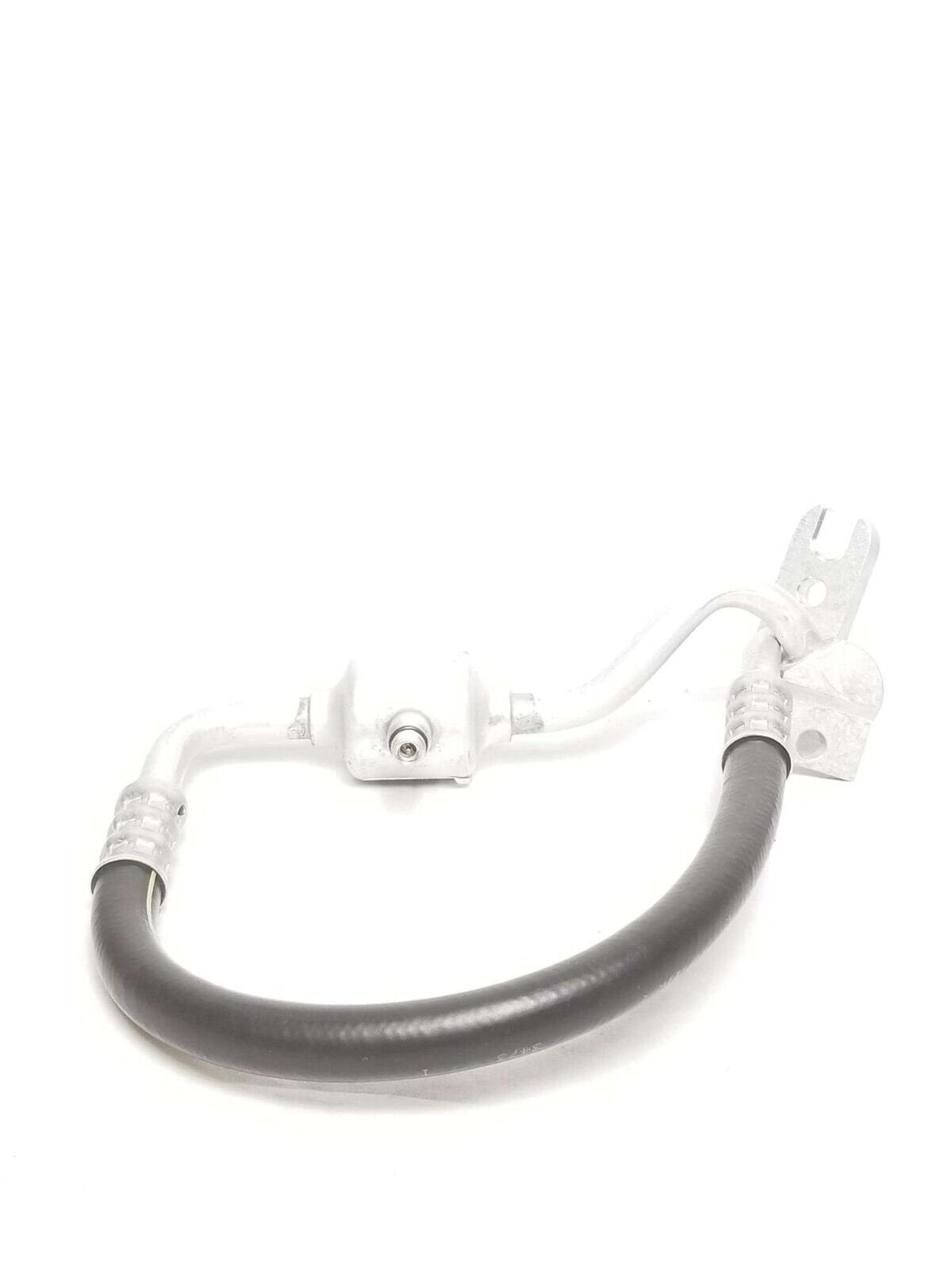

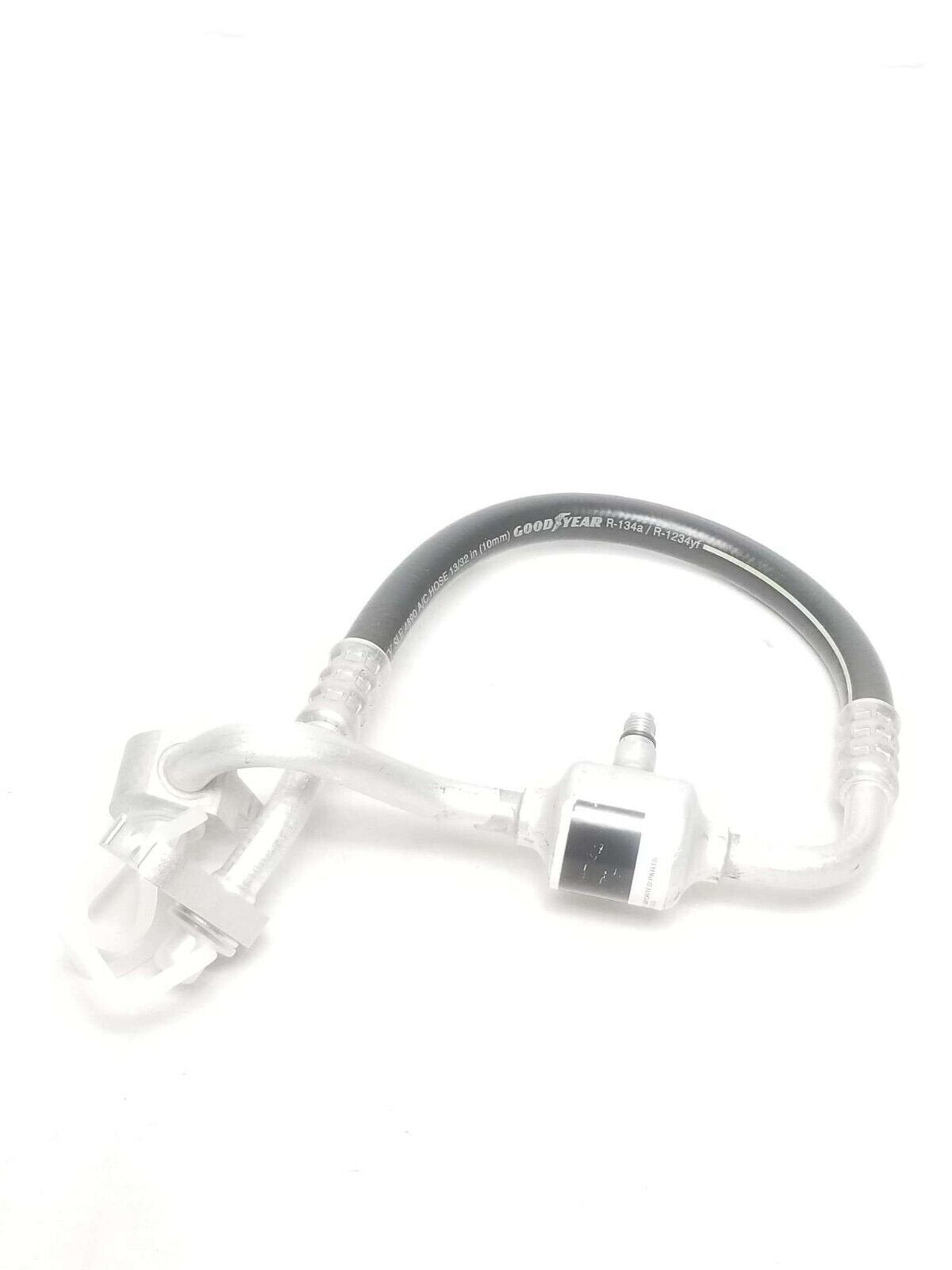

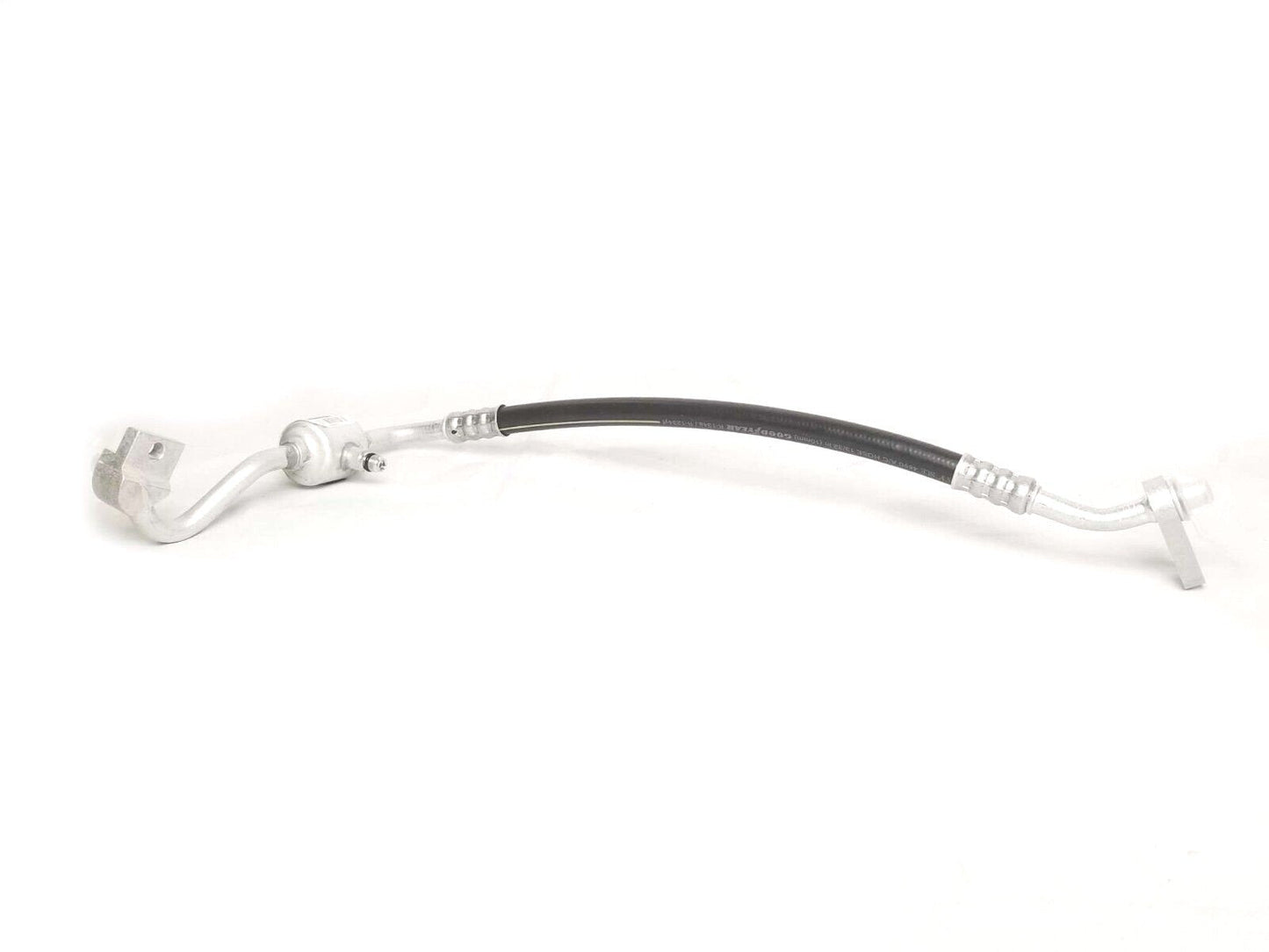

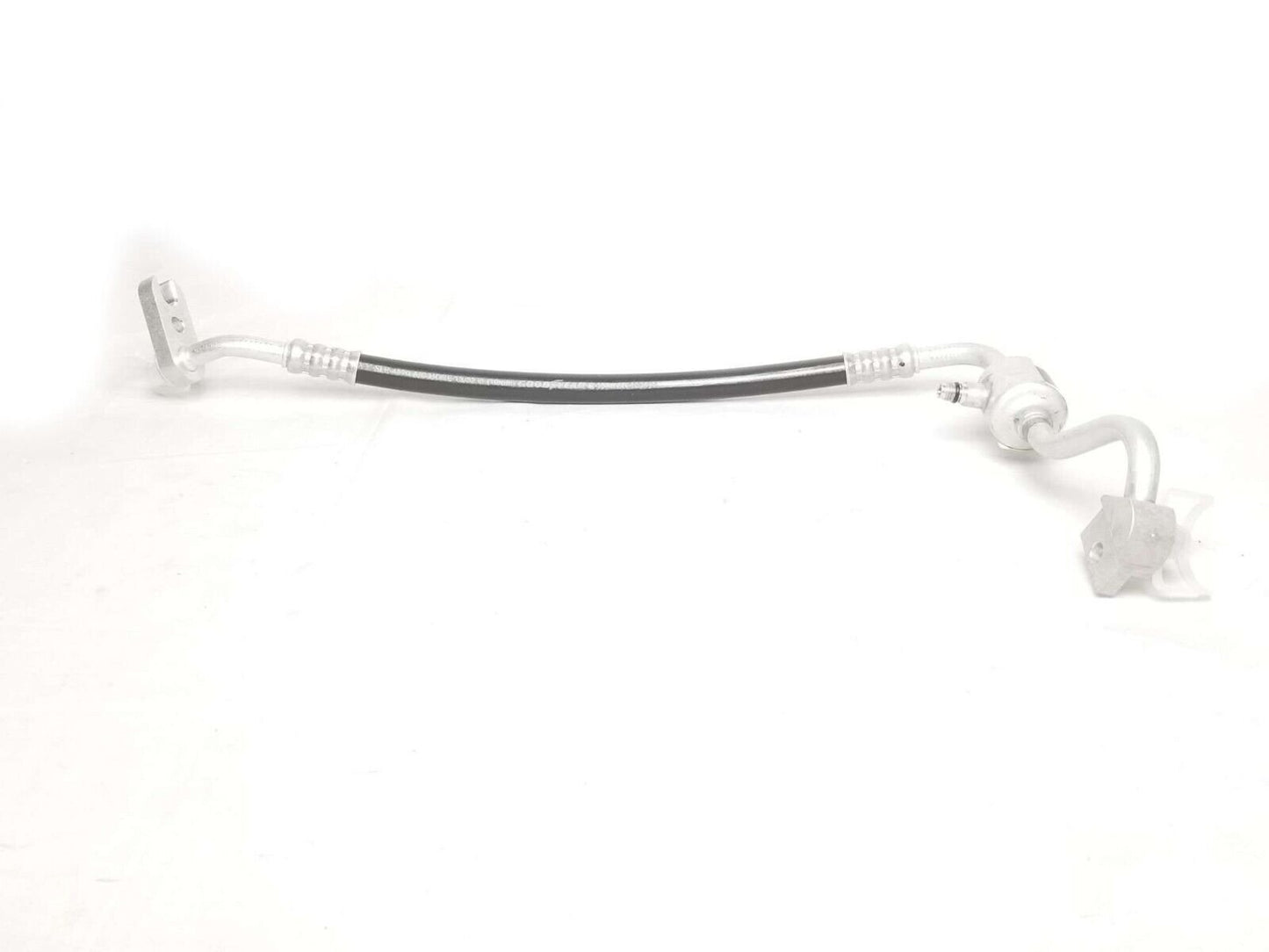

New A/C Discharge Hose / High Side Hose
GM Genuine A/C Refrigerant Hose / Line
With Muffler – Includes Protective Sleeve
ACDelco Part #: 15-34670
GM Part #: 84194976
Superseded / Interchange: 22777831 > 823438932 > 84194976
Additional Reference Numbers: 23357011, 23272783, 23220458, 84401906
Fitment
This part fits the following vehicles:
- 2015 Cadillac Escalade
- 2014–2015 Chevrolet Cheyenne – 5.3L / 6.2L V8
- 2014–2015 Chevrolet Silverado 1500 – 4.3L V6 / 5.3L / 6.2L V8
- 2015 Chevrolet Suburban – 5.3L V8
- 2015 Chevrolet Tahoe – 5.3L V8
- 2014–2015 GMC Sierra 1500 – 4.3L V6 / 5.3L / 6.2L V8
- 2015 GMC Yukon / Yukon XL – 5.3L / 6.2L V8
Product Details
- A/C condenser discharge hose / high side refrigerant line
- Includes muffler for noise reduction
- Includes protective sleeve on hose
- High-pressure side hose
- Molded hose assembly
- Material: Aluminum and rubber
- Original Equipment (OEM) replacement part
- May require bracket #23264893 (sold separately)
- Designed for vehicles with option codes: CJ2, CJ4, C67
Specifications
| End 1 Inside Diameter | 0.306 in / 7.78 mm |
| End 1 Outside Diameter | 0.461 in / 11.71 mm |
| End 1 Type | Male Pad Mount |
| End 2 Inside Diameter | 0.306 in / 7.78 mm |
| End 2 Outside Diameter | 0.461 in / 11.71 mm |
| End 2 Type | Male Pad Mount |
| Fittings Included | No |
| Gasket or Seal Included | No |
| Hose Shape | Molded Assembly |
| Length | 22.31 in / 566.77 mm |
| Material | Aluminum, Rubber |
| Switch Service Port | No |
| System Pressure | High |
Important Notes
- This listing is for the 1st design hose.
- For 2nd design, see GM part #23220458.
- Please verify fitment using your VIN to ensure correct design and options.
